On-Premises Exchange 2007+ In-Place Archives to Microsoft 365 Personal (In-Place) Archives Migration Guide

This guide contains the steps necessary to migrate in-place archive mailboxes from On-Premises Exchange servers (versions 2007 and later) to in-place archive mailboxes on Microsoft 365.

There are some tools and resources that will make the migration easier.

Exchange questions and troubleshooting

Our Exchange Mailbox FAQ, Exchange Migration Setup and Planning, and Exchange Mailbox Migration Troubleshooting guides contain a number of common questions and concerns, along with more information, guidance, and steps to resolve issues such as throttling.

What items are and are not migrated?

Migrated items vary by version of Exchange. The following list is for Exchange Server 2010 SP1+. If you are using an alternate version of Exchange, please refer to the Migrated and Not Migrated Items list and check for your version of Exchange.

Exchange Server 2010 SP1+

Migrated

  • Inbox
  • Folders
  • Email
  • Contacts
  • Calendars
  • Tasks
  • Journals
  • Notes
  • BCC Recipients
  • Post (when the destination is Exchange or Microsoft 365)

Not Migrated

  • Inactive mailboxes
  • Email templates
  • Email flags (if the destination is G Suite)
  • Safe Sender/Block Lists
  • Mail Settings
  • Standalone documents stored in Mailbox Folders or Public Folders (Example: IPM.Document item types)
  • System Public Folders
  • StickyNote folders
  • Public folder permissions
Note: If Exchange is the Source, and an account exists in the destination that matches
the UPN prefix of an account with Calendar Permissions in the Source prior to
submitting a migration, Calendar Permissions will be migrated, except for Resource
Calendars. Resource Calendars permissions are not migrated.
If Exchange is the Source, and an account does not exist in the destination that
matches the UPN prefix of an account with Calendar Permissions in the Source
prior to submitting a migration, Calendar Permissions will not be migrated.

First migration?

We’ve created a guide on scoping, planning, and managing the migration process for your use. If this is your first migration, we recommend reading this guide carefully.

DeploymentPro & DMA

DeploymentPro currently can only officially be used with migration projects where Microsoft 365 is the Destination. If using DeploymentPro with Exchange (either On-Premises or Hosted) as a Destination, then a Proof of Concept should be run first. We do recommend using DeploymentPro in this scenario.

Exchange environments can have complex Autodiscover settings, along with UPN and SMTP address mis-matches, which can require troubleshooting and reconfiguration before DeploymentPro can be made to work against such environments.

DeploymentPro is included with the User Migration Bundle license. DeploymentPro cannot be purchased as a standalone service license, and it cannot be added to the single-use mailbox migration license. If you wish to remotely configure Outlook mail profiles using DeploymentPro after a migration, purchase the User Migration Bundle license.

The DeploymentPro Guide and DeploymentPro FAQ will guide you through the proof of concept, as well as any other DeploymentPro questions, while the DMA Installation and Introduction to DMA articles provide resources and guidance on DMA.

MigrationWiz

MigrationWiz is a migration tool, not a syncing tool. If changes are made at the source after migration, they will not sync to the destination, nor will changes made at the destination sync to the source. We do not have “live” monitoring of changes (as with a sync agent) and we cannot handle scenarios such as conflict resolution without user interaction.

MigrationWiz supports the capability to share migration projects across a Workgroup. When the Project Sharing feature is turned on, all Agents besides those who are Inactive can view all migrations projects.

We are not able to support migrations with two-factor or multifactor authentication.

Preparation

If your Source server is running Exchange version 2003, or Small Business Server (SBS), refer to the Prepare Source Exchange Environment section for instructions on how to prepare your Source server for migration: On-Premises Exchange 2003 to Microsoft 365 Migration Guide.

We recommend that the mailbox migration project is performed first, before migrating archives. For guidance, refer to the migration guide that matches your scenario. For example, if your Source server is Exchange 2007 or later, refer to On-Premises Exchange (versions 2007 and later) to Microsoft 365 Migration Guide.

If a mailbox migration project has already been performed, the same administrative credentials that you used during your mailbox migration project can be used for this project. It is likely that you have already performed all of the steps in each section, other than the MigrationWiz Steps. Proceed to the MigrationWiz section of this guide.

 Important: If the In-Place Archive mailbox being migrated is more then 100 GB in size and auto expanding archiving is enabled for the In-Place Archive mailbox in the destination tenant, the migration may take 30 days or more to complete due to the auto expanding archiving process not making space available immediately in the destination archive mailbox when moving data. If you have additional questions, please contact BitTitan support.

A note on root migrations

Exchange migrations do not migrate from the root, as EWS only sees and migrates items contained in folders. To migrate items at the root, create a folder for these items, drag and drop the items into the folder, and then migrate as usual.

Prepare the Source Exchange Environment

If you have already completed a mailbox migration project against this Source environment, these steps will already have been completed.

Create Administrator account

Set up an administrator account for migration on the Source Exchange mailbox server. EWS must be working on the Source Exchange server.

To test:

  1. Close all browser instances. This ensures that all session state browser cache is flushed.
  2. Open a new browser instance.
  3. Navigate to your OWA login page.
  4. Log in to OWA.
  5. Once you see the inbox, copy the URL from the navigation bar of the browser. This is the exact OWA URL that should be entered into MigrationWiz​.

To set up the administrator account:

  1. Open the Exchange Management Console.
  2. Expand the Recipient Configuration node.
  3. Right-click on the Mailbox node.
  4. Click New Mailbox.
  5. Click Next.
  6. Click Next.
  7. Enter "MigrationWiz" as the first name.
  8. Enter "MigrationWiz" as the user logon name, and optionally select a user principal name (UPN) domain.

OWA

If you have not already done so, set up router ports for OWA traffic, following the steps in the Prerequisites section of this article. Set different OWA URLs for each environment and configure router ports to accept inbound/outbound mail traffic for those OWA URLs.

If you have followed through all the prerequisite steps of this guide, this step will already have been completed.

Test mailbox access

 You can verify independently if a mailbox is accessible using EWS with the following steps:

  1. Go to https://testconnectivity.microsoft.com
  2. Select Service Account Access (Developers) and click Next.
  3. Specify the target mailbox email address.
  4. Specify the service account user name. If using admin credentials on the connector, enter the exact same user name.
  5. Specify the service account password. If using admin credentials on the connector, enter the exact same password.
  6. Check Specify Exchange Web Services URL and specify the URL (example: https://server/EWS/Exchange.asmx).
  7. Do not check Use Exchange Impersonation.
  8. Check Ignore Trust for SSL.
  9. Click Perform Test.
  10. Once results are displayed, check the overall result, and click Expand All.

Disable throttling

This is only relevant for Exchange 2010+. Exchange 2007 and earlier do not have throttling policies. Disabling the throttling will allow for a faster migration. Follow the instructions in Option 1 for the relevant Exchange instance.

Prepare the Destination Environment

If you have already completed a mailbox migration project against this Source environment, these steps will already have been completed. If not, create an administrator account in Microsoft 365 to use for this migration, or use the global admin account for the tenant.

Set up accounts

Set up accounts on Microsoft 365 and assign licenses. These can be created in several ways:

Large items

Prepare the tenant to send and receive large mail items via the following steps.

Increase Message Size Limits

This is a two-step process. The reason for this is that if the message size limits of Exchange are increased, the IIS limits will also have to be increased to allow increased payloads. There are other non-standard settings that can also cause size restrictions for the IIS or EWS connections, but we are unable to troubleshoot or identify specific environment restrictions outside of these settings.

To display current message size limits:

  1. Open the Exchange Management Shell.
  2. Enter the following commands:

Get-TransportConfig | Format-List -Property MaxReceiveSize, MaxSendSize
Get-SendConnector | Format-List -Property Identity, MaxMessageSize
Get-ReceiveConnector | Format-List -Property Identity, MaxMessageSize
Get-MailBox | Format-List -Property PrimarySmtpAddress, MaxSendSize, MaxReceiveSize

To increase message size limits on the Exchange Server:

  1. Open the Exchange Management Shell.
  2. Enter the following commands:

Set-TransportConfig -MaxReceiveSize 150MB -MaxSendSize 150MB
Get-SendConnector | Set-SendConnector -MaxMessageSize 150MB
Get-ReceiveConnector | Set-ReceiveConnector -MaxMessageSize 150MB
Get-Mailbox | Set-Mailbox -MaxSendSize 150MB -MaxReceiveSize 150MB

Increase IIS Limits to Allow Accepting Payloads

There are three limits that should be increased in IIS:

  • maxRequestLength
  • maxAllowedContentLength
  • maxReceivedMessageSize

Follow these steps to increase the Exchange message size limits on your client access server:

  1. Open Windows Explorer.
  2. Navigate to %ExchangeInstallPath%FrontEnd\HttpProxy\ews\
  3. Open the file Web.Config in a text editor, such as Notepad.
  4. Find the XML tag starting with for each change.
  5. Change the existing value to maxRequestLength="200000" -- this occurs in one place in the Web.Config file.
  6. Change the existing values to maxAllowedContentLength="200000000" -- this occurs one place in the Web.Config file.
  7. Change the existing values to maxReceivedMessageSize="200000000" -- this entry occurs up to 12 times. This needs to be changed for each Authentication method.
    For example:
    <httpsTransport maxReceivedMessageSize="200000000" authenticationScheme="Anonymous" maxBufferSize="81920" transferMode="Streamed" />
    <httpsTransport maxReceivedMessageSize="200000000" authenticationScheme="Basic" maxBufferSize="81920" transferMode="Streamed" />
    etc.
  8. If you are running IIS7 and Windows 2008, it may be necessary to increase WCF settings.
  9. Save the file.
  10. IIS Reset is not needed, web.config changes are picked up by the next connection.

Follow these steps to increase the Exchange message size limits on your mailbox server:

  1. Open Windows Explorer.
  2. Navigate to %ExchangeInstallPath%ClientAccess\exchweb\ews\
  3. Open the file Web.Config in a text editor, such as Notepad.
  4. Find the XML tag starting with for each change.
  5. Change the existing value to maxRequestLength="200000" -- this occurs in one place in the Web.Config file.
  6. Change the existing values to maxAllowedContentLength="200000000" -- this occurs one place in the Web.Config file.
  7. Change the existing values to maxReceivedMessageSize="200000000" -- this entry occurs up to 12 times. This needs to be changed for each Authentication method.
  8. If you are running IIS7 and Windows 2008, it may be necessary to increase WCF settings.
  9. Save the file.
  10. IIS Reset is not needed, web.config changes are picked up by the next connection.
Increase Maximum Accepted Content Length

You may increase the maximum accepted content length by following these directions:

  1. Open Windows Explorer.
  2. Navigate to C:\Program Files\Microsoft\Exchange Server\ClientAccess\exchweb\ews
  3. Open the file Web.Config in a text editor such as Notepad.
  4. Go to the end of the file.
  5. Insert or edit the following XML code before the </configuration> tag:

    <system.webServer>
    <security>
    <requestFiltering>
    <requestLimits maxAllowedContentLength="104857600" />
    </requestFiltering>
    </security>
    </system.webServer>

If XML code is already present in the Web.Config file, edit it to match what is shown above.

Sample Web.Config before changes:

<configuration>
<system.web>
...
...
</system.web>
</configuration>

Sample Web.Config after changes:

<configuration>
<system.web>
...
...
</system.web>
<system.webServer>
<security>
<requestFiltering>
<requestLimits maxAllowedContentLength="104857600" />
</requestFiltering>
</security>
</system.webServer>
</configuration>



Increase Maximum Received Message Size

If you are running IIS7 and Windows 2008, you may need to increase WCF settings:

  1. Open Windows Explorer.
  2. Navigate to C:\Program Files\Microsoft\Exchange Server\ClientAccess\exchweb\ews
  3. Open the file Web.Config in a text editor like Notepad.
  4. Find all XML tags starting with maxReceivedMessageSize=
  5. Change existing values to maxReceivedMessageSize="104857600"
  6. Save the file.
  7. Open a Command Prompt (cmd.exe).
  8. Type: cd %windir%\system32\inetsrv
  9. Type: appcmd.exe set config "Default Web Site/ews" -section:requestFiltering -requestLimits.maxAllowedContentLength:104857600
  10. Run: iisreset



MSPComplete Steps

If you have already completed a mailbox migration project against this Source environment, these steps will already have been completed. The endpoints that were created for your mailbox migration project can be used for your in-place archive migration project.

Create Customer

  1. Click the Add button in the top navigation bar
  2. Click the Add Customer button on the All Customers page
  3. In the left navigation pane, select the appropriate workgroup and then click All Customers.
  4. Click Add Customer.
  5. Enter the new customer’s information in the Add Customer form. Primary Email Domain and Company Name are required. The rest are optional.
  6. Click Save.
  7. Repeat steps 1 through 4 for each customer you want to add.

Purchase licenses

A User Migration Bundle license is required for this migration scenario. User Migration Bundle licenses allow multiple types of migrations to be performed with a single license. They also allow DeploymentPro to be used to configure Outlook email profiles. For questions on licensing, visit MigrationWiz Licenses

To purchase licenses:

  1. Sign in to your BitTitan account.
  2. In the top navigation bar, click Purchase.
  3. Click the Select button and choose User Migration Bundle licenses.
  4. Enter the number of licenses you want to purchase. Click Buy Now.
  5. Enter a Billing address if applicable.
  6. Click Next.
  7. Review the Order Summary and enter a payment method.
  8. Click Place Your Order.

MigrationWiz Steps

Create a Migration Project

Create a Personal Archive Migration project.

  1. Click the Go to My Projects button.
  2. Click the Create Project button.
  3. Select Personal Archive Migration Project.
  4. Click Next Step.
  5. Enter a Project name and select a Customer.
  6. Click Next Step.

Endpoints

You may either select an existing endpoint or create a new one.

If you are selecting existing endpoints, use Exchange Server 2003+ for the source, and Microsoft 365 for the destination.

To create a new source endpoint:

    1. Click New.
    2. Name the endpoint.
    3. Select type Exchange Server 2003+.
    4. Enter the OWA URL.
    5. Provide credentials: Click the Provide Credentials radio button, and enter the admin account credentials for the account that was set up under the “Prepare the Destination Environment” section of this guide.
    6. Click Add.
    7. Click Next Step.

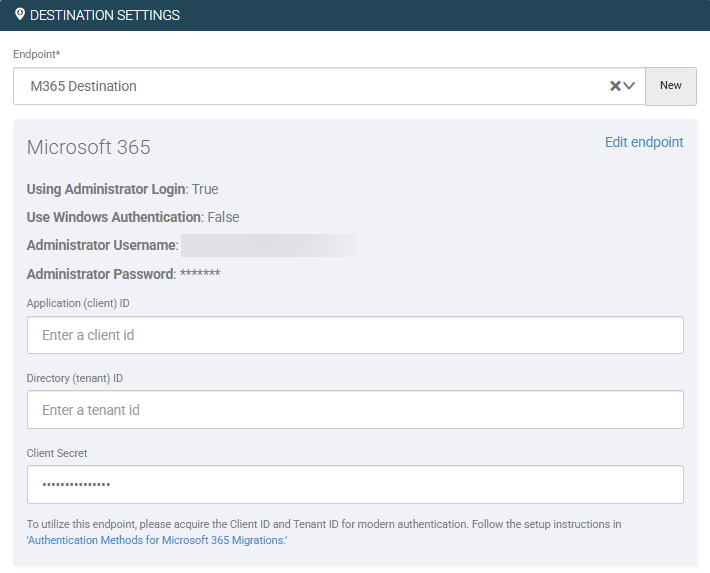

    8. Select or create a new destination endpoint.
    9. To create a new destination endpoint:
      1. Click New.
      2. Name the endpoint.
      3. Select type Microsoft 365.
      4. Provide credentials.
      5. Click Add.
      6. Click Next Step.
      7. Click Save and Go to Summary.

Add Users

Add the user accounts that will be migrated to the project. This may be done in several ways, depending on the size of the project. Steps for each option are in the accordion below, simply click to show the option you select and follow the guidance there.

Small Migrations:

For small migrations, it is easy to add users one-at-a-time using Quick Add. The steps for this are below.

Larger Migrations:

For larger migrations, we recommend either using the Autodiscover or Bulk Add option.

Autodiscover will add all users found on the source tenant. This can then be edited in the project to remove users not being migrated. All users will be added with the source and destination email addresses set to match the source email. This can be changed by using the Change Domain Name button at the top of the project page. If the usernames are changing during the migration, we recommend using the Bulk Add option.

Bulk Add uses a CSV containing the source and destination email addresses for the users to add the users to the project. If migrating only a specific group from a tenant, we recommend using the Bulk Add option.

Quick Add
This option allows you to add items one at a time. You have to enter an email address, login name, and password for each user if you didn't enter administrative credentials when setting up the project. You only have to provide an email address if you entered administrative credentials when setting up the project.
Bulk Add

MigrationWiz allows you to bulk import mailboxes into the system.

To import one or more mailboxes:

  1. Sign in to your MigrationWiz account.
  2. Select the Project for which you want to perform the bulk import.
  3. Click Add.
  4. Click Bulk Add.
  5. Follow the instructions on the page.
Autodiscover

​The Autodiscover process within MigrationWiz can be used to discover items from the Source environment, so that they can be imported into your projects.

There are few requirements in order for this to work:

  • The Source has to be Exchange 2007 or later.
  • The endpoint on the Source needs to use admin credentials.
  • For mailbox migration projects, the admin account that is specified within the Source endpoint needs to have a mailbox associated with it.
  • The admin mailbox must be listed in the public Global Address List (GAL).

One additional item to note here is that there is not a way to restrict the IP addresses that the connection will come from.  This means that the steps outlined in our IP Lockdown guide will not apply here.  If your environment requires that any IP addresses be whitelisted, it is recommended that items be added to your project using on of the other available options.

Autodiscover of items will not work while using Modern Authentication

Autodiscovery exposes the following items:

  • For mailbox migration, Autodiscover will list all mailboxes at the Source.

Steps to Run Autodiscover

  1. Navigate to the project you want to import users into.

  2. Ensure that you have created an endpoint for the source project.

  3. Once in the project, on the top navigation bar, click on the Add drop-down, then select Autodiscover Items. This will begin the Autodiscover process.

  4. Once discovered, click on the Import button, to import the items into your MigrationWiz project.

Set Advanced Options

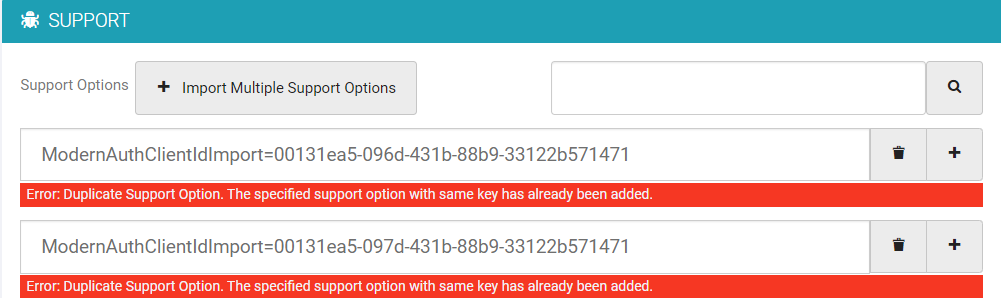

Navigate to Support Options and add the following:

  1. IMPORTANT: Set your preferred Destination. The default is to migrate into the primary mailbox, not the archive mailbox at the Destination. To change this, set Destination: Microsoft Office 365 > migrate to: Archive under the Source/Destination in the advanced options of the project.
  2. Set to use impersonation at the Destination. Checkmark the Use impersonation at Destination box.
  3. Set Maximum concurrent migrations. If the Source server has enough server resources, set this parameter based on the bandwidth guideline of three (3) mailboxes per 1Mbps of bandwidth. Therefore, for example, if there is a 10Mbps connection, we recommend setting the maximum concurrent migrations parameter to be 30. If the Source server has very few available server resources (e.g., it is running low on memory or it has a very high CPU utilization), we recommend setting this value to a lower number to avoid overwhelming the Source server with requests.

Run Verify Credentials

  1. ​Sign in to your MigrationWiz account​.
  2. Open the Project containing items you wish to validate​.
  3. Select the items you wish to validate.
  4. Click the Start button in your dashboard.
  5. Select Verify Credentials from the drop-down list.

Once complete, the results of the verification will be shown in the Status section.​

Notify Users

Notify users that a migration is occurring. Send email to all users telling them the time and date of the migration.

Run Migration

For archive migrations, we recommend only running a Full Pass Migration, rather than following the Pre-Stage Migration strategy (typically used with mailbox migration projects).

Since the archive migration project is typically performed after the mailbox migration project has been completed (or at the same time), this guide does not include the steps for MX record cutover.

Full pass

  1. Select the users.
  2. Click the Start button from the top.
  3. Select Full Migration.
  4. Click Start Migration.

Run Retry Errors

Look through the user list and click any red "failed migration" errors. Review the information and act accordingly.

If problems persist, contact Support.

Request Statistics

Click the pie chart icon in the MigrationWiz dashboard to receive an email containing all the project migration statistics.

Was this article helpful?
0 out of 2 found this helpful
